Apple M5 Pro & M5 Max (2026): The Most Important Mac Chips in Years Analyzed

Introduction & Strategic Context

On March 3rd, 2026, Apple announced the M5 Pro and M5 Max, the two highest-tier variants of its fifth-generation Apple Silicon family, destined for the 14-inch and 16-inch MacBook Pro. On the surface, that reads as a routine chip refresh. Looking deeper at the silicon design decisions Apple has made, however, it becomes clear that the M5 Pro and M5 Max represent something categorically different from what came before.

To be direct about it: this is Apple’s chiplet moment. After years of scaling the M-series by enlarging a monolithic die, adding cores, widening execution units, and stretching memory bandwidth through brute-force controller multiplication, Apple has pivoted. The M5 Pro and M5 Max are not enlarged versions of the base M5. They are two distinct third-generation 3nm dies, bonded together into a single system-on-chip package through what Apple is calling Fusion Architecture.

It is worth noting that the base M5, announced in October 2025 for the 14-inch MacBook Pro, iPad Pro, and Apple Vision Pro, remains a conventional single-die design. Fusion Architecture is specific to the Pro and Max tiers, and its introduction changes how we should think about the ceiling of Apple Silicon scaling going forward. Whether a similar approach will be extended to an M5 Ultra or an M5 Extreme variant for the Mac Pro remains an open question.

What follows is a detailed examination of every architectural layer: the CPU and its new core naming taxonomy, the GPU’s Neural Accelerator integration, the memory subsystem, the AI compute claims, storage, and connectivity. Where Apple’s marketing numbers are available, I have noted them as such and distinguished them from what the architectural evidence independently suggests.

Fusion Architecture: The Dual-Die Pivot New

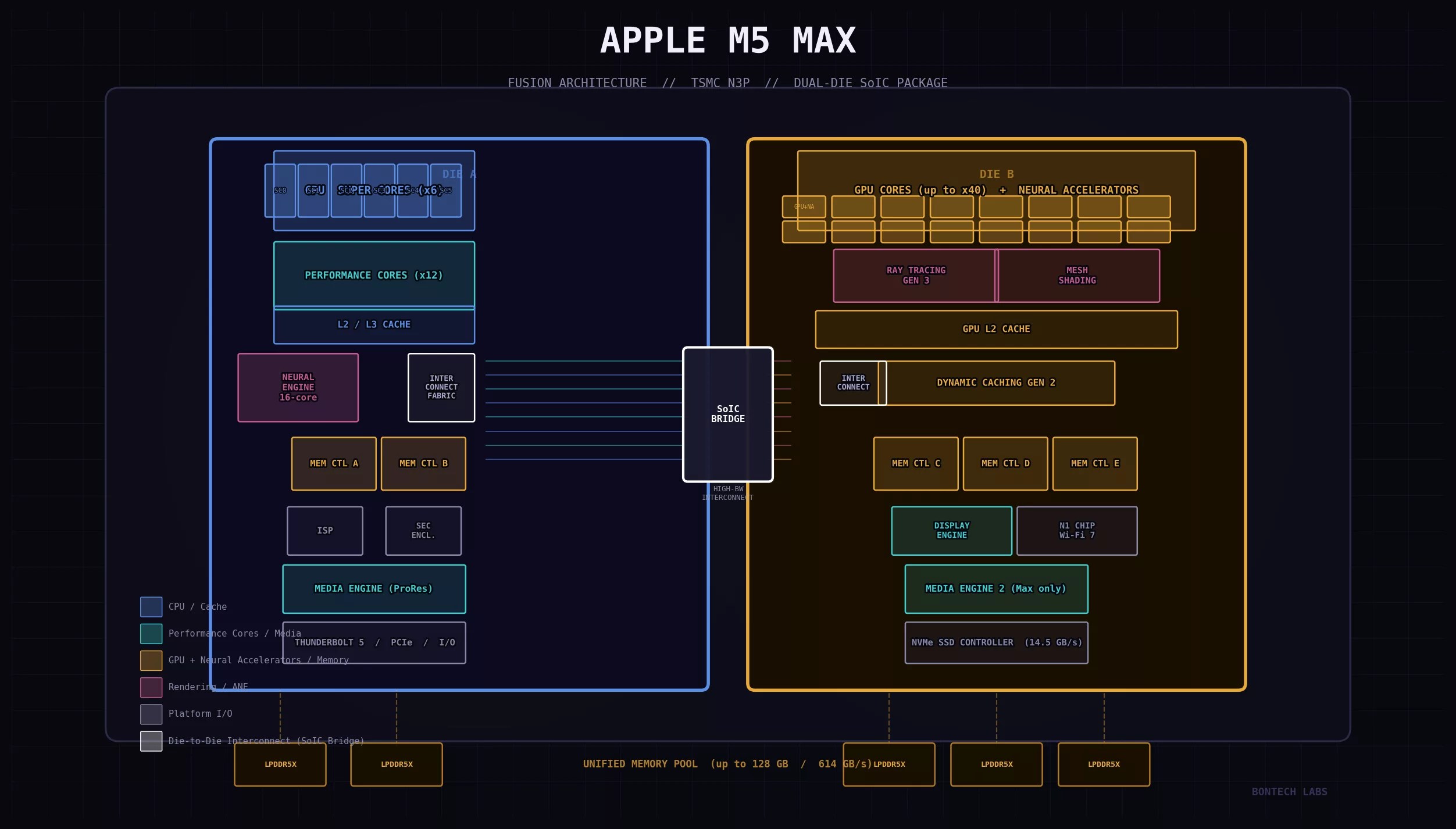

The fundamental premise of Fusion Architecture is the bonding of two separate 3nm dies, manufactured on TSMC’s N3P process, into a single unified SoC package. Apple has reportedly used TSMC’s SoIC-mH advanced packaging technology to achieve this, though the company has not publicly confirmed the specific packaging variant. The interconnect between the two dies operates with sufficiently high bandwidth and low enough latency that macOS’s unified memory model is preserved: the CPU, GPU, and Neural Engine all share a single address space regardless of which physical die a given component resides on.

This is Apple’s answer to a problem that every high-performance SoC designer eventually confronts: you cannot keep growing a monolithic die indefinitely. Die yield decreases as die area increases, manufacturing costs scale non-linearly, and there are physical limits to how many controllers and buses you can route through a single piece of silicon. AMD solved this problem years ago with its chiplet-based Ryzen and EPYC processors; Intel has pursued a similar strategy with its Foveros packaging. Apple’s implementation is distinct in one important respect: it maintains a unified memory architecture across both dies, something that discrete CPU-GPU chiplet designs do not inherently provide.

The practical consequence of this design is that Apple can now scale core counts and memory bandwidth beyond the physical limits of a single N3P die, while retaining the software model that has made Apple Silicon compelling since the M1. Developers do not need to manage inter-die data movement; the hardware and macOS abstract that entirely.

There is a legitimate question about whether this dual-die approach introduces any latency asymmetry, that is, whether memory accesses originating from a component on Die A and targeting data held by a controller on Die B incur measurably higher latency than same-die accesses. Apple has not published any latency topology data, and we will need independent benchmark analysis to characterise this properly. It is an area that warrants criticism in post-launch testing.

CPU Topology: Super Cores, Performance Cores & the Rename

The Core Naming Confusion, Untangled

Before examining the CPU microarchitecture, it is necessary to address the naming changes Apple introduced alongside the M5 Pro and M5 Max announcement, because they create genuine ambiguity if left unexplained.

In the base M5 (October 2025), Apple used the traditional naming convention: performance cores (high-throughput) and efficiency cores (low-power). With the M5 Pro and M5 Max, Apple has introduced a new naming scheme. The high-throughput cores are now called “super cores”, and the M5’s efficiency cores have been replaced entirely by a new core design called “performance cores”, a distinct microarchitecture optimised specifically for power-efficient multithreaded work. There are no efficiency cores in the M5 Pro or M5 Max.

With that established, both the M5 Pro and M5 Max share an identical 18-core CPU configuration: six super cores and twelve performance cores. This is a departure from prior generations, where the Pro and Max variants had different core counts (M4 Pro: 14 cores; M4 Max: 16 cores). The convergence on a single CPU configuration for both chips is architecturally interesting; it suggests the differentiation between Pro and Max is now primarily a GPU and memory bandwidth story rather than a CPU one.

Apple also offers a lower-binned M5 Pro configuration with 15 CPU cores (5 super + 10 performance), presumably yielded from dies that do not pass the 18-core qualification, which is standard practice in the industry.

CPU Performance Claims

Apple states that multithreaded CPU performance is up to 30% faster than the M4 Pro and M4 Max, and up to 2.5× faster compared to the M1 Pro and M1 Max. Single-threaded performance tracks closely with the base M5, which NotebookCheck’s early analysis suggests topped its Geekbench 6.5 single-core charts, ahead of both Qualcomm’s Snapdragon X2 Elite Extreme and the M4 Pro.

What Apple’s 30% multithreaded uplift figure reflects is primarily the combination of two effects: the higher core count (18 vs. 14 for M4 Pro, 18 vs. 16 for M4 Max) and the architectural improvements in both the super core and the new performance core design. Disentangling those two contributions will require per-core throughput measurements in independent testing, something we fully intend to pursue once review hardware is available.

GPU Architecture & Neural Accelerators: Architectural Shift

The GPU story in the M5 Pro and M5 Max is perhaps the most architecturally significant component of this generation, not because the core counts have changed (they have not; the M5 Pro still tops at 20 GPU cores, the M5 Max at 40, matching their M4 counterparts), but because of what Apple has placed inside each GPU core.

Neural Accelerators in Every Core

Every GPU core in the M5 Pro and M5 Max now contains a dedicated Neural Accelerator specialised fixed-function hardware for accelerating machine learning inference directly on the GPU, without requiring the workload to be offloaded to the Neural Engine. This is a meaningful architectural addition. In prior generations, AI workloads on the GPU competed for shader execution resources. The Neural Accelerator is a dedicated execution unit, meaning GPU-based AI inference can now run in parallel with conventional shader workloads rather than serialised against them.

Apple claims this delivers more than 4× the peak GPU compute for AI than M4 Pro and M4 Max. That is a striking number given the identical core counts, and it is the Neural Accelerator that accounts for the multiplier, not raw GPU throughput. Developers can target these units directly using Tensor APIs in Metal 4, or indirectly through Core ML and Metal Performance Shaders, which will receive automatic performance gains in applications that already use Apple’s frameworks.

GPU AI Compute  Peak Performance (Relative Units, Apple-Stated)

Neural Accelerator integration is the primary driver of M5 Pro/Max’s AI GPU compute multiplier over M4 equivalents.

† Apple internal figures. “GPU AI compute” reflects peak GPU-accelerated machine learning inference throughput.

Shader Architecture & Ray Tracing

Beyond the Neural Accelerator addition, the GPU also receives enhanced shader cores, second-generation dynamic caching (introduced with the M3 generation and refined further here), hardware-accelerated mesh shading, and Apple’s third-generation ray-tracing engine. For conventional graphics workloads, Apple’s claimed improvement is more modest: up to 20% faster general graphics performance versus the M4 generation. This is consistent with what we would expect from iterative shader improvements without a core count increase.

Ray-tracing performance receives a larger uplift, Apple states, up to 35% faster on M5 Pro and 30% faster on M5 Max compared to M4 counterparts, attributable to the third-generation ray-tracing engine’s improved BVH traversal and intersection testing hardware. For applications that rely heavily on ray tracing, 3D rendering pipelines, and game engines with RT enabled, this is a practically meaningful gain.

Unified Memory & Bandwidth Scaling

Unified memory bandwidth has always been one of the most consequential specifications in Apple Silicon’s design because every compute element (CPU, GPU, Neural Engine) draws from the same physical pool; memory bandwidth is shared across the entire chip. High bandwidth is not a luxury; it is a necessity for the heterogeneous compute model to function efficiently at high utilisation.

The bandwidth numbers here are striking. The M5 Max’s fully configured variant delivers 614 GB/s, a figure that would have been competitive with discrete high-end desktop GPUs just two years ago. For professional applications that are bandwidth-bound rather than compute-bound (large LLM inference, high-resolution ProRes video processing, complex fluid simulations), this is the specification that matters most.

The M5 Pro’s 307 GB/s is approximately double that of the M4 Pro’s 153 GB/s, a substantial step up that reflects the broader die area enabled by the Fusion Architecture approach. The M5 Max at 614 GB/s similarly reflects the expanded memory controller count that a dual-die design makes possible. In prior generations, the Max tier’s bandwidth advantage over the Pro was primarily achieved by doubling the memory controller count on a larger monolithic die; with Fusion Architecture, those controllers can be distributed across both dies.

It is important to contextualise these figures: bandwidth does not translate directly to application performance in a simple linear fashion. The benefit depends entirely on how memory-bound a given workload is. LLM inference at large model sizes is one of the clearest examples of a genuinely bandwidth-limited workload, which is precisely why Apple is emphasising this metric alongside its AI performance claims.

AI Compute: Quantifying the Claims

Apple’s AI performance claims are the most aggressively marketed aspect of the M5 Pro and M5 Max announcement, and they deserve careful examination. The headline numbers Apple has put forward include:

All figures: Apple internal benchmarks, February 2026. Units normalised for display. These numbers span multiple components simultaneously. The 4× LLM prompting improvement over M4 Pro and M4 Max reflects the combined effect of the Neural Engine’s higher-bandwidth memory connection (new on M5 Pro/Max), the Neural Accelerators in each GPU core, and the substantially higher memory bandwidth that allows larger model weights to be loaded and processed without becoming bottlenecked at the memory subsystem. The 8× AI image generation improvement is measured against M1 Pro/Max, which is a considerably more flattering baseline. However, it is nonetheless a practical data point for users still running legacy Apple Silicon hardware.

The 16-core Neural Engine is present in all M5 variants. What distinguishes the M5 Pro and M5 Max is that their Neural Engine benefits from a higher-bandwidth connection to unified memory, a specification Apple disclosed but has not quantified numerically. This means the Neural Engine can feed its execution units with model weights at a higher sustained rate, directly improving throughput for large-model inference. This is a hardware-level change, not merely a software optimisation.

What remains to be verified in independent testing is whether these AI performance improvements hold up in real-world application conditions, particularly for large language model inference at the scales that professionals are increasingly running locally (70B+ parameter models in quantised form). The memory bandwidth figures give theoretical grounds for optimism. Still, Apple’s benchmark conditions and the specific models and quantisation levels they used are not publicly specified, which is standard practice for Apple but limits our ability to project performance to arbitrary workloads.

SSD Performance & Platform Connectivity

SSD: Up to 2× Faster

Apple claims the M5 Pro and M5 Max MacBook Pro deliver up to 2× faster SSD read and write performance than M4-generation equivalents, with peak throughput of 14.5 GB/s (sequential read, Apple’s internal FIO testing, 1024 KB block size, IO depth=8). For context, the M4 Pro MacBook Pro delivered approximately 7.4 GB/s sequential read in comparable conditions. The improvements are most pronounced in the M5 Max configuration.

Starting storage has also been doubled: M5 Pro MacBook Pro models now begin at 1TB, and M5 Max models at 2TB, with no additional cost over the prior generation’s starting configurations. This is a welcome change for a machine at this price point; 512GB was an increasingly untenable base capacity for a professional system.

Thunderbolt 5 & Wireless

Both the M5 Pro and M5 Max bring Thunderbolt 5 to the MacBook Pro, replacing the Thunderbolt 4 found on the base M5 model. Thunderbolt 5’s 120 Gbps bidirectional bandwidth enables improved external display support, including up to a single 8K/60Hz display or multiple 6K/60Hz displays simultaneously, and substantially faster external storage and PCIe device throughput.

The inclusion of Apple’s N1 chip brings Wi-Fi 7 and Bluetooth 6 to the platform, providing improved wireless performance and reliability over the previous Wi-Fi 6E/Bluetooth 5.3 configuration. This is an Apple-designed wireless chip, the first time Apple has vertically integrated its own wireless silicon into a Mac, and it reflects the broader strategy of controlling as much of the hardware stack as possible.

Performance Projections & Benchmark Expectations

With hardware shipping on March 11th, independent benchmark data remains unavailable at the time of writing. What we can do is construct reasonable projections based on Apple’s stated performance figures and the architectural evidence examined above.

For single-threaded CPU performance, we would expect M5 Pro and M5 Max results to closely track the base M5, which early reports indicate topped the Geekbench 6 single-core charts. Geekbench 6 single-core estimates for the M5 Max have been placed around 4,500 by NotebookCheck’s pre-launch analysis, though this should be treated as an approximation pending actual hardware testing.

For multicore performance, the 18-core CPU (6+12) combined with Apple’s 30% multithreaded improvement claim suggests Geekbench 6 multicore scores in the range of 30,000–34,000 for the M5 Max, which would represent a meaningful step up from the M4 Max’s approximately 24,000–26,000 multicore score.

For GPU throughput in non-AI workloads, the 20% general graphics improvement claim over M4 Pro/Max should manifest in applications like Final Cut Pro rendering, Blender Cycles, and game-engine performance. The 35% ray-tracing uplift on M5 Pro should be more clearly observable in specific RT workloads. Metal performance scores are estimated around 250,000 for the M5 Max, though again, this is a pre-launch projection.

The most interesting benchmark territory will be AI-specific tests, LLM inference benchmarks using tools like LM Studio, Ollama, and llama.cpp; image generation throughput in Draw Things or ComfyUI; and Core ML model inference latency comparisons. These are the workloads where the Neural Accelerator addition should produce the most differentiated results relative to prior generations, and they are also the workloads that are most directly relevant to how a significant portion of the professional audience will actually use this machine in 2026.

Analysis & Verdict

The M5 Pro and M5 Max are, without qualification, the most architecturally interesting chips Apple has produced since the M1 Ultra. Not because the performance numbers are the largest Apple has ever claimed; they are not, but because of what Fusion Architecture represents as a strategic decision: Apple has permanently changed how it will scale the M-series from this generation forward.

The dual-die approach solves a real engineering problem. The base M5 on a single N3P die cannot accommodate 18 CPU cores, 40 GPU cores, and 614 GB/s of memory bandwidth without exceeding economically viable die sizes. Fusion Architecture allows Apple to hit those specifications without producing a die so large that yield rates and manufacturing costs become prohibitive. It also means that future M-series chips, M6 Pro, M6 Max, and whatever comes after, will almost certainly continue building on this multi-die foundation, enabling further scaling that would not have been possible on a monolithic path.

The Neural Accelerator integration deserves particular attention. This is not Apple merely claiming to have made AI faster; it is a concrete change to the GPU’s execution unit composition. Every GPU core now contains dedicated hardware for ML inference. The 4× GPU AI compute figure over M4 Pro and M4 Max is almost entirely explained by this architectural addition, and it will compound over time as more applications and frameworks learn to utilise it via Metal 4’s Tensor APIs.

Where I would urge restraint is in accepting Apple’s benchmark claims wholesale. The specific models, quantisation levels, and testing conditions for the LLM and AI image generation figures remain opaque. The memory bandwidth and storage figures are more straightforward to verify and more likely to hold up under independent testing. The CPU and GPU performance uplifts should also prove broadly accurate once hardware is in reviewers’ hands.

Hardware availability begins March 11th, 2026. Full benchmark coverage, including LLM inference, ProRes video throughput, Blender Cycles, Xcode compilation, and memory bandwidth verification, will follow once review units are in hand.
