With AMD’s Ryzen 9000 “Granite Ridge” CPUs and Ryzen 9000X3D chips hitting the market, AM5 is maturing. But the platform’s complexity has grown — chipsets now range from B850 to X870E, with new AI tuning features, faster DDR5 support, and PCIe 5.0 lanes everywhere. This guide breaks down what matters so you can match your CPU, memory, and GPU to the right motherboard without overspending.
1. Understand the AM5 Chipset Landscape

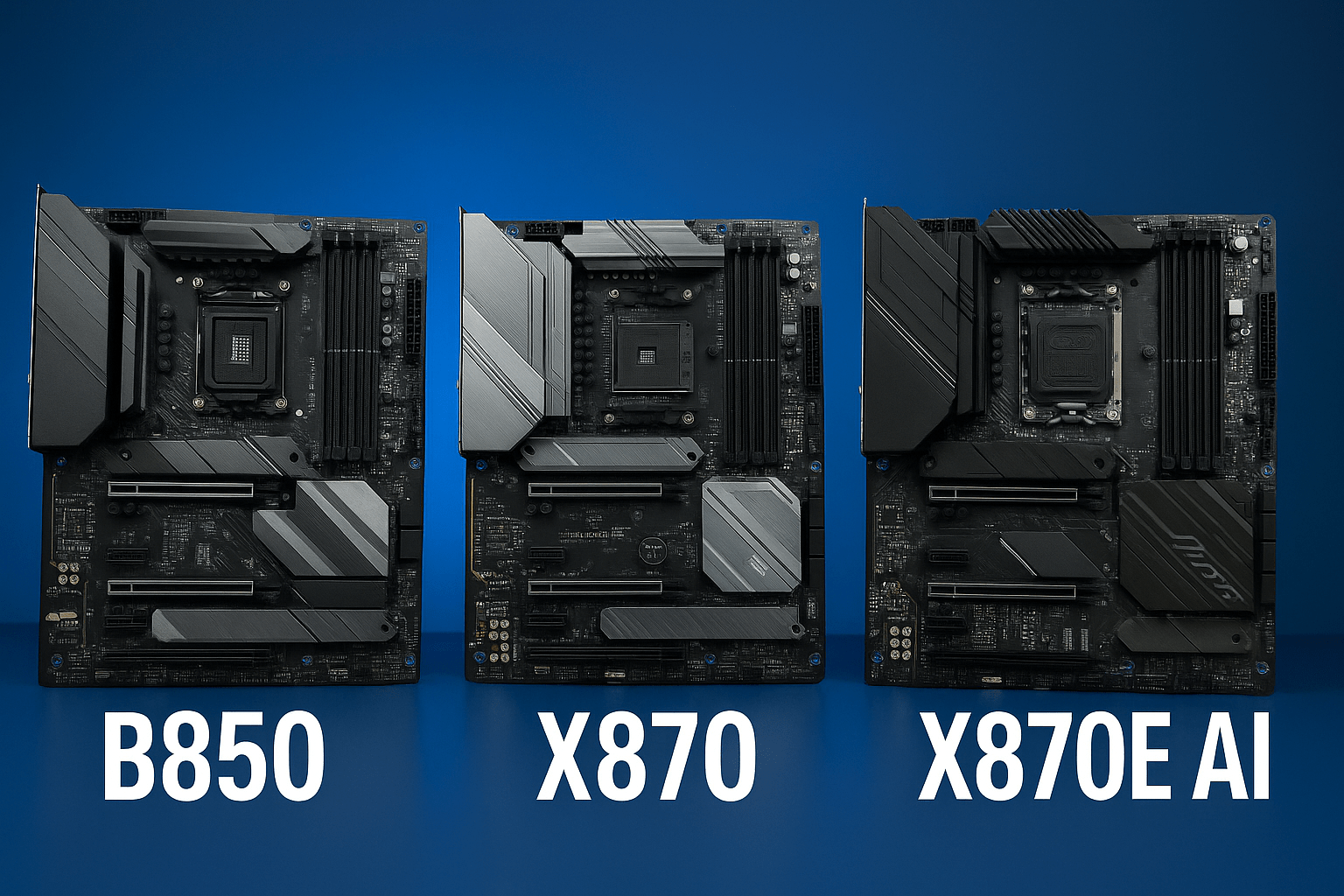

AMD’s current chipsets for AM5:
-
B850 / B850A – Mid-range, fewer PCIe 5.0 lanes, but enough for single-GPU gaming rigs.
-
X870 / X870E – Enthusiast, full PCIe 5.0 support for GPU and NVMe, more USB 4.0 ports.
-
X870E AI boards – The newest boards with “AI” features (Gigabyte’s X3D Turbo Mode 2.0, ASUS AI Overclocking).
When to choose each:
-
B850: Budget / mid-range gaming builds.
-
X870: Overclocking and high-speed storage setups.
-
X870E AI: Premium build, Ryzen 9000X3D, DDR5-8000+ memory, or custom loops.
2. VRM & Power Delivery
For Ryzen 9000X3D CPUs or high-end 12–16 core chips, look at:
-
Phase Count & Ratings: 14–18 phases @ 90–105A is good for overclocking.
-
Heatsinks: Oversized, finned, sometimes with heatpipes.
-
Active Cooling: Rare, but present on some flagship boards.
Mid-range 6–8 core CPUs don’t need the heaviest VRM, so you can save money on the motherboard.
3. DDR5 Memory Support
Official support for DDR5-6400 to DDR5-8000 varies by CPU and BIOS. Look for:
-
QVL Lists: Check your motherboard’s Qualified Vendor List to avoid headaches.
-
AEMP / EXPO Profiles: Ensure easy memory overclocking.
-
Number of Slots: Four DIMMs offer flexibility; two DIMMs at high speeds offer the best stability.
4. PCIe & Storage
-
GPU Slot: Ensure PCIe 5.0 x16 for future GPUs.
-
NVMe Slots: How many PCIe 5.0 M.2 slots you need? High-end boards often have 3–4.
-
Heatsinks: Look for full-length, finned heatsinks on M.2 drives for Gen 5 SSDs (they run hot).
5. Connectivity & Features
-
USB 4.0 / 40Gbps Ports: Becoming standard on X870E boards.
-
Wi-Fi 7: Some boards already include it; otherwise, you can add a PCIe card later.
-
2.5G vs 10G LAN: Decide if you need faster LAN speeds.
6. Form Factor
-
ATX: Standard, plenty of room for components and slots.
-
mATX / ITX: Good for compact builds but fewer VRM phases and slots.
7. AI & Auto-Tuning Features
If you’re not a manual overclocker, the new AI/auto features on Gigabyte, ASUS, MSI boards are worth exploring:
-
Gigabyte X3D Turbo Mode 2.0: AI-based real-time tuning for Ryzen 9000X3D.
-
ASUS AI Overclocking: Uses telemetry to auto-set voltages and frequencies.
These can give you near-expert tuning without manual tweaking, especially for memory timings.
8. Budget Allocation
A common mistake: overspending on the motherboard at the expense of GPU or storage. As a rule:
-
Spend ~10–15% of your total build budget on the motherboard.
-
Only step up to X870E AI if you’re running top-tier CPUs and want bleeding-edge features.
Conclusion
AM5 has matured into a versatile platform. B850 boards now offer strong value for mainstream builds, while X870E AI motherboards deliver cutting-edge features and automatic tuning for enthusiasts. Decide what matters — VRM strength, PCIe 5.0 lanes, memory speeds, or AI tuning — and pick accordingly.
This guide should help you cut through the marketing noise and build a Ryzen 9000 PC that’s balanced, stable, and ready for the next few years.
