Why this guide: DDR5 changes more than speeds. It moves voltage regulation onto the module, adds on-die ECC for yield/reliability, and pushes signal integrity to the limit above 6000 MT/s. This masterclass explains capacity planning, the trade-off between frequency and latency, and a conservative step-by-step tuning plan that won’t corrupt your project files.
DDR5 architecture in plain English
- PMIC on-module: DDR5 DIMMs regulate power locally, which improves stability at high data rates but adds heat under poorly ventilated shrouds.
- Two 32-bit channels per DIMM: Improves parallelism and helps the memory controller keep banks busy.
- On-die ECC (ODECC): Corrects bit errors inside each DRAM chip—it’s not the same as platform ECC with extra DRAM for end-to-end protection. (JEDEC/Synopsys/Kingston overviews linked below.)
Capacity planning
Gaming & general: 32 GB is the new sensible floor; 64 GB if you stream, mod heavily, or keep dozens of Chrome tabs/apps parked. Creator/Dev: 64–128 GB depending on 4K/8K timelines, large After Effects comps, VMs or Docker stacks. For workstation ML tinkering, capacity often matters more than another 200–400 MT/s.
Speed vs. latency: what moves the needle
Bandwidth helps memory-bound tasks (integrated graphics, compression, some content creation), while actual game and app responsiveness often track the first-word latency. A well-tuned 6000–6400 kit with tight timings can beat a looser 7200 kit in mixed work. On AM5, watch the memory controller/fabric ratios; chasing headline speeds that force a poor UCLK:MCLK ratio can hurt performance.
XMP vs. EXPO and why QVLs still matter
Our XMP vs. EXPO guide covers the basics; the short version: XMP (Intel) and EXPO (AMD) are vendor-encoded timing packs read from SPD. Many kits today ship dual profiles. Before purchase, check both the motherboard QVL and the memory vendor’s own validation sheets; those lists reflect real boot/training success at the advertised speed.
Safe tuning playbook (conservative)
- Baseline: Boot JEDEC speed. Update to the latest stable BIOS/AGESA/ME firmware.
- Profile: Enable XMP/EXPO. Leave voltages on profile defaults.
- Quick stability sweep: 30–60 minutes of an integrated memory test (e.g., TM5/Anta777, Karhu, OCCT memory) plus a few passes of your real workloads.
- Incremental tweaks: If you must, nudge tCL/tRCD/tRP in small steps, or lift frequency one bin. On AM5, monitor fabric/UCLK ratios; on Intel, watch SA/IMC guidelines.
- Long test: 4–8 hours of mixed memory tests + your heaviest projects. Error-free only.
- Thermals: If DIMMs have shrouds, ensure airflow over the PMIC area.
ECC vs. ODECC: don’t confuse them

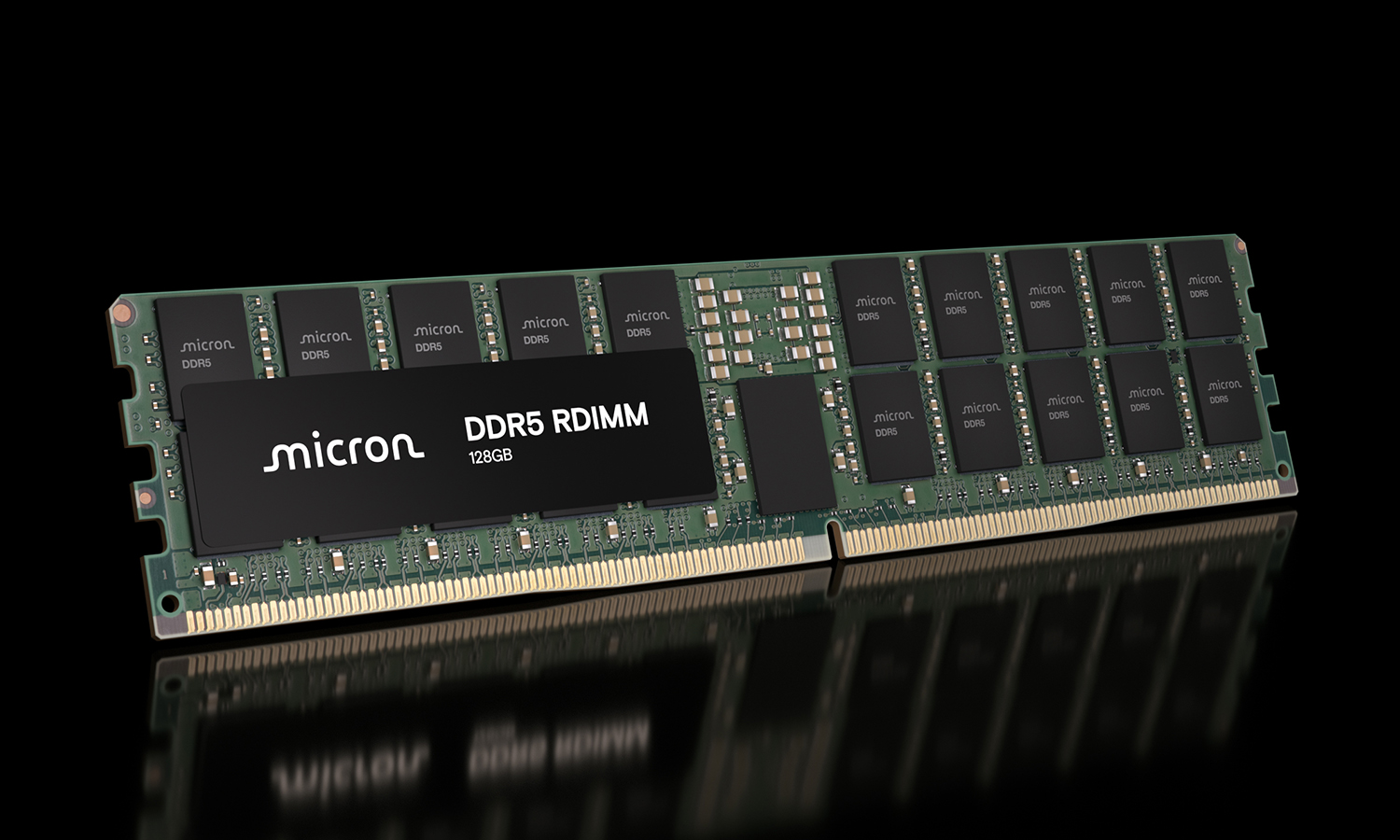

ODECC (part of DDR5 chips) cleans up single-bit issues inside the DRAM die. Platform ECC (UDIMM/RDIMM with extra bits) protects the data path end-to-end and requires CPU/board support. If your system guards scientific compute, databases, or business-critical work, buy true ECC-capable platforms.
Ranks, ICs, and population
Dual-rank modules can perform better at moderate clocks due to more bank-level parallelism, but they stress training at very high data rates. Four DIMMs are tougher than two; if you need 64–128 GB, consider 2×32 GB or 2×48 GB before 4× sticks. Vendor QVLs will reveal realistic ceilings for each topology.
What actually improves real apps
- iGPU gaming, CPU encoders, compression: Bandwidth helps—aim for 6000–6400+ on Intel, 6000–6200 sweet spot on many AM5 IMCs.
- Game minimums/1% lows: Latency and cache interplay; don’t over-volt for a tiny bandwidth win.
- Creation: Prefer capacity first, then stability, then speed.
Troubleshooting training failures
- Lower to the board’s 2DPC qualified speed; add a touch more VDD/VDDQ only within vendor guidance.
- Relax tRFC and tertiary timings before pushing primary CAS lower.
- Keep SoC/SA voltage well within platform caps to avoid long-term degradation.
