Motherboards have traditionally been silent enablers — they route power, data, and signals, but leave performance tuning largely to users. Over the past decade, we’ve seen incremental auto-overclocking features, memory training improvements, and firmware tweaks. Gigabyte’s new X870E Aorus X3D Ice series changes that narrative by claiming AI-driven real-time tuning, promising up to 25% gaming uplift out of the box. This isn’t just a firmware preset; it’s pitched as an on-board AI model.
Is this the next evolution of motherboard design, or another headline-grabbing feature with marginal impact? Let’s break it down.

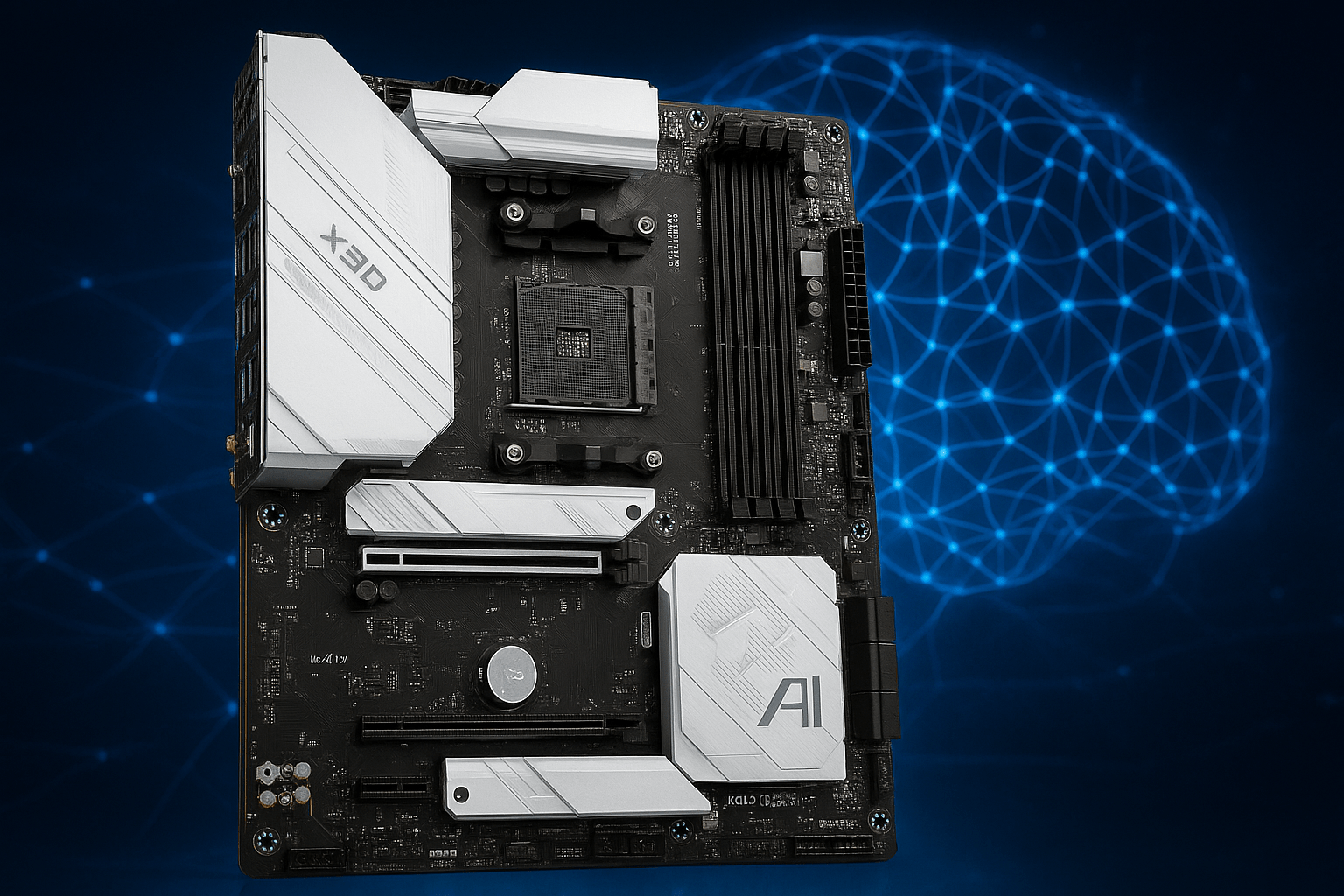

The Hardware: X870E Aorus X3D Ice, Master X3D Ice, and Pro X3D Ice
Gigabyte’s new lineup consists of three premium boards:
-
Aorus Elite X3D Ice
-
Aorus Master X3D Ice
-
Aorus Pro X3D Ice
All three target AMD’s Ryzen 9000 X3D series CPUs (Granite Ridge) and future AM5 processors. Key physical features include:
-
18+2+2 VRM phases on the Master variant, with oversized heatsinks and 105A stages designed for heavy current draw.
-
PCIe 5.0 slots for both GPUs and NVMe, supporting high-end storage and next-gen GPUs.
-
DDR5 support up to 9000 MT/s (via “D5 Bionic Corsa” memory tuning technology).
-
65W USB-C front-panel connector for fast charging and high-bandwidth peripherals.
-
White-silver aesthetic with integrated RGB zones.
At face value, these are top-tier boards. The difference is the AI-driven X3D Turbo Mode 2.0 Gigabyte is advertising.
What Is “X3D Turbo Mode 2.0”?
Gigabyte claims that each of these boards runs an embedded model that:
-
Monitors CPU frequency, power draw, thermal sensors, and workload composition in real time.
-
Dynamically adjusts boost behaviour, PBO (Precision Boost Overdrive), and memory timings.
-
Does so automatically without user input, beyond enabling it in BIOS or Gigabyte’s software.
On paper, this is a step beyond the “EZ Overclock” buttons we’ve seen for years. The AI model supposedly learns and adapts to each system’s cooling, voltage headroom, and workload patterns to deliver optimal performance while keeping stability.
The Technical Context
1. AI Tuning vs Conventional Auto-OC
Motherboards like ASUS’s AI Suite or MSI’s OC Genie already offer one-click overclocking. The difference here is continuous feedback. Instead of setting static voltages and frequencies after a training pass, Gigabyte’s firmware may run a lightweight inference loop to adjust settings on the fly — akin to how laptop NPUs optimize power states.
This requires:
-
A fast control path between sensors and firmware.
-
Safe voltage adjustment envelopes to avoid instability.
-
Possibly a dedicated microcontroller or embedded processor on the board to run the model, rather than the CPU itself.
Gigabyte hasn’t disclosed the compute hardware powering the AI model, but given its marketing, there’s likely at least a beefed-up embedded controller.
2. Memory Subsystem
DDR5 at 9000 MT/s is extreme. Most current Ryzen 9000 chips officially support DDR5-6400 to DDR5-8000 depending on the IMC. Pushing beyond that often requires manual tuning and careful PCB trace design. Gigabyte’s “Bionic Corsa” memory tuning likely:
-
Uses trained profiles per DRAM vendor.
-
Applies dynamic voltage tweaks based on training outcomes.
-
Adjusts Command Rate and tRFC timing on the fly for stability.
This is cutting edge for consumer boards — but the further you push DDR5 speeds, the less gain you often see in real workloads. Latency can offset bandwidth improvements.
Performance Claims: Up to 25% Gaming Uplift
Gigabyte cites “up to 25%” improvements in gaming. This is a classic marketing qualifier. In practice:
-
Gains are likely largest in CPU-bound, high-refresh scenarios (1080p esports titles).
-
In GPU-bound workloads (4K gaming, ray tracing), uplift will be negligible.
-
In mixed workloads, the AI tuning may reduce frame time spikes rather than boost average FPS.
Independent testing will be crucial. We’ve seen one-click OC features in the past yield 5–10% gains under ideal conditions; 25% would be extraordinary without increasing power draw or risking instability.
Thermal & Power Considerations
High-end VRM hardware allows the board to safely deliver more current to the CPU. But VRMs, chokes, and capacitors still produce heat. If your cooling (both CPU and case airflow) isn’t up to par, the AI may scale back performance automatically to avoid throttling — meaning you see less benefit.
In other words: the AI can only exploit the headroom you give it. Users with big tower coolers or custom loops will likely benefit more than those with compact air coolers.
Competitive Landscape
ASUS, MSI, and ASRock
Each has its own auto-tuning suites:
-
ASUS “AI Overclocking” reads telemetry and sets recommended values.
-
MSI “Game Boost” provides pre-set profiles.
-
ASRock “BCLK OC Tuning” automates base clock adjustments.
Gigabyte’s pitch is real-time adaptation rather than pre-set profiles. If it works reliably, that’s a differentiator.
AMD’s Role
AMD’s own Precision Boost Overdrive already allows automatic frequency scaling based on thermal and power headroom. Gigabyte’s AI presumably layers on top of this, adjusting PBO limits dynamically. The risk is double-tuning or conflicts between firmware layers.
Strategic Implications
-
Raising the Bar for Motherboards
If Gigabyte’s AI mode proves stable and beneficial, consumers may start expecting intelligent tuning out of the box, pushing other vendors to invest in firmware/software. -
Democratizing Performance
Enthusiasts already know how to tweak voltages and clocks. The AI could bring near-expert tuning to average users, effectively flattening the skill barrier. -
Potential Ecosystem Lock-In
If the AI model is proprietary and updated via Gigabyte’s software, users may feel nudged to stay within Gigabyte’s ecosystem for GPUs, memory, and peripherals to get best results. -
Pressure on CPU Vendors
If motherboards can wring out double-digit gains automatically, CPU vendors may need to rethink stock boost behaviours — either pushing chips closer to their silicon limits or offering official “smart tuning” partnerships.
Risks & Limitations
-
Firmware Maturity: Early BIOS releases may have bugs. Continuous tuning is more complex than static profiles.
-
Instability Under Edge Loads: Games and workloads with spiky CPU usage may trip the AI’s heuristics.
-
Power & Heat: More aggressive boosting equals more heat; small form factors will suffer.
-
Cost Premium: These are high-end boards — early adopters pay extra for features whose real-world benefits are not yet proven.
Outlook
We’re entering an era where motherboards are not just passive backplanes but active participants in performance optimization. Gigabyte’s X870E AI lineup is a bold step in that direction. The idea of embedded machine learning models tuning CPU and memory in real time sounds like marketing fluff until it’s proven. But if it works — stable, repeatable gains without manual tweaking — it could redefine what premium motherboards offer.
In the meantime, potential buyers should:
-
Wait for independent benchmarks before paying the premium.
-
Ensure their cooling setup can actually benefit from higher boost behaviour.
-
Consider whether memory kits rated for >8000 MT/s are worth the investment for their workloads.
This is a fascinating development to watch — and a sign that “smart” hardware is coming to the heart of our PCs, not just peripherals.
