Aqua Computer AMPINEL – active 12V-2×6 load balancing

Why 12V-2×6 (16-pin) has been a headache

Connector incidents over the last couple of years weren’t just about bent cables. The deeper problem is uneven current distribution across the six 12V rails. If one or two pins carry more than their rated 7.5 A, you get local hotspots and, in the worst case, softened housings, oxidized contacts, or outright melting. Passive monitors can tell you something went wrong; they don’t move the current.

What AMPINEL actually does

• Six-channel active balancer: a microcontroller monitors all six 12V lines in real time and shifts load to keep each rail within spec.
• Hard limits baked into hardware: when a line crosses roughly the per-contact rating, the controller redistributes before heat can run away.
• Failsafes: visual (RGB), audible (~85 dB buzzer), and emergency shutdown that can break the sense line or signal the system to cut power.
• Telemetry: an OLED shows per-line current; Aquasuite software logs >40 metrics (voltage, temp, per-rail power) for diagnostics.

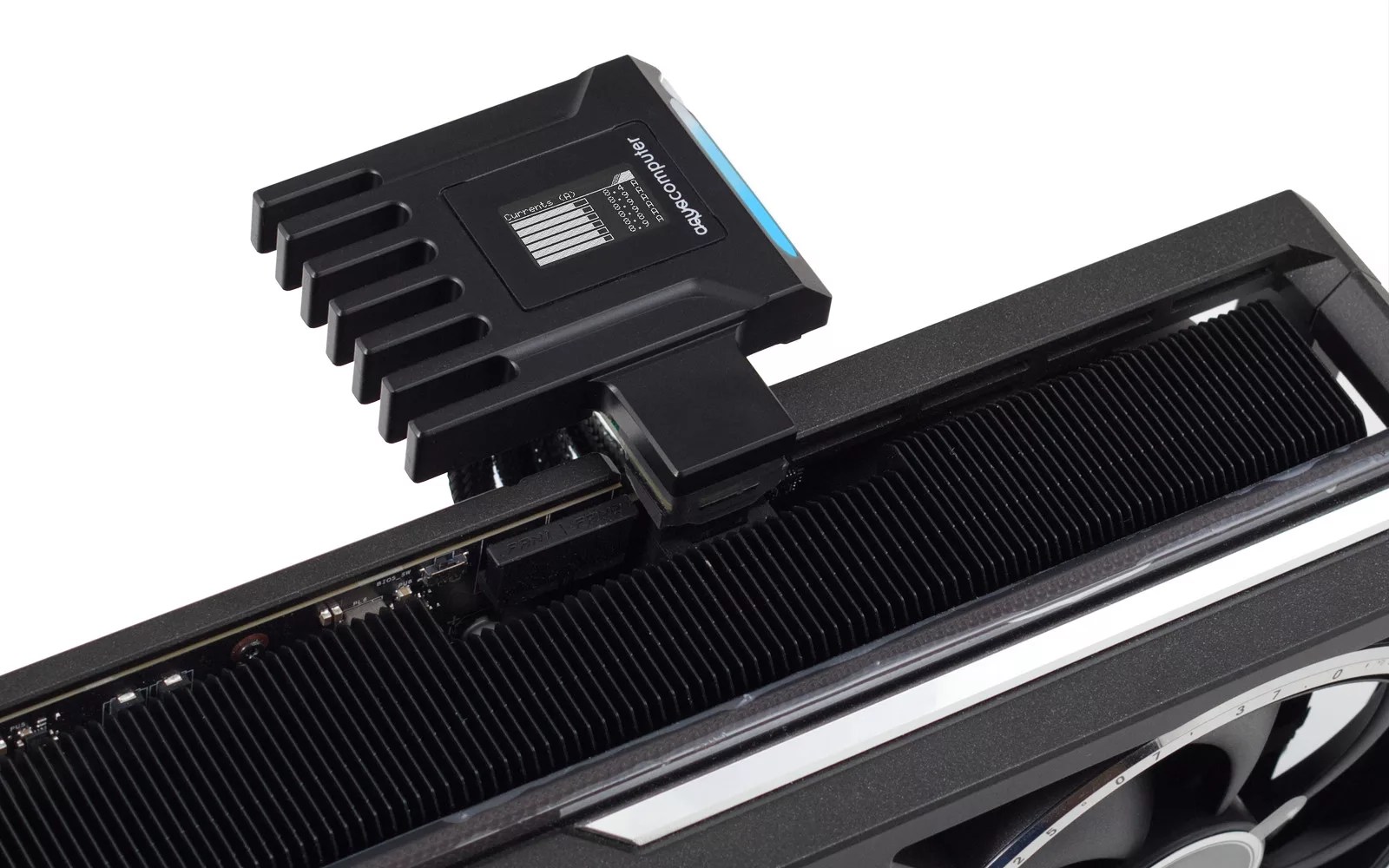

• Thermal design: a milled aluminum body doubles as a heatsink; the GPU-side plug is potted to stabilize the mechanical interface.

How it’s different from passive widgets

Most “safety” accessories live in two camps: (1) temperature or current sensors that alert you late, or (2) beefier cables/adapters that hope to spread load naturally. AMPINEL is a third category—closed-loop control. If one contact drifts high, the device intervenes and equalizes. That’s the same principle that makes multi-phase VRMs stable under transient spikes.

Installation & compatibility

It slots between PSU and GPU on any card using the 12V-2×6 family (which supersedes 12VHPWR). You’ll want clean cable runs, no excessive bends at the connector, and to keep dust off the mating surfaces. The module draws its own small power budget, but far less than a single rail can carry.

Who should consider it

• High-draw GPUs: top-end Ada and next-gen cards that flirt with the 450–600 W envelope.
• Small-form-factor builds: tight cable radii increase contact stress—active balancing is cheap insurance.
• 24/7 creators and labs: you can log rail balance over time and flag marginal PSUs or adapters before failure.

Limitations

It won’t fix a physically damaged connector or a mis-seated plug. If you’re habitually hot-plugging under load (don’t), or running daisy-chained splitters from under-spec PSUs, no accessory can save that. Think of AMPINEL as the seatbelt—not the roll cage.
