HBM4 and Packaging in 2026: The Bottleneck No One Wants To Own

2026 will not be won by a shinier compute tile, but it’ll be won by the teams that can bolt enough healthy HBM onto a big die. In addition to this, keeping that memory cool hour after hour, feed it clean power across a fussy package, and repeat the process in volume without drama. HBM4 pushes bandwidth and stack height, tightens pitches, and shrinks your margin for sloppy engineering. Anyone can pass a quick demo, but weekly stability is where the bodies are buried, so to speak. That is the real bottleneck that decides who ships and who starts explaining delays.

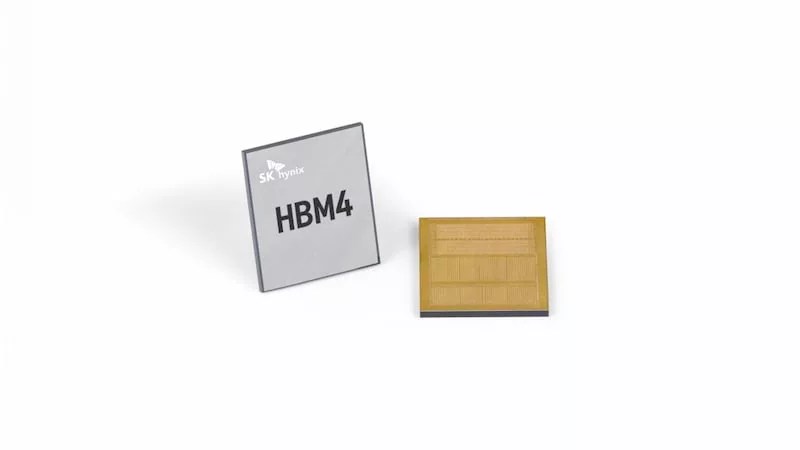

HBM4 in one paragraph that matters

HBM4 raises bandwidth per stack and the practical capacity you can carry on a package. It does that by widening interfaces and pushing per-pin rates while allowing taller stacks in the same footprint. You get more bandwidth per millimetre around the compute die and better energy per bit than a comparable GDDR setup. The catch is simple. Taller stacks run hotter. Tighter bumps push current density up. Timing margins shrink once the entire package sits at temperature for an hour. HBM4 gives headroom, but it demands discipline.

Why memory, not compute, sets the ceiling

Compute still scales if you tile it and keep clocks honest. Memory does not care about your slide deck. The ceiling is how many known-good stacks you can mount at yield and how those stacks behave under soak when the hall is hot. Every failed stack is a margin gone. Every rail that chatters under load turns into a silent error storms that chew tokens and time. Most vendors can post a headline number for ten minutes. Buyers remember the teams that ship stable packages for months without surprises.

HBM stack physics that punish lazy designs

• Thermal gradient. As stacks get taller, the temperature difference from base die to top die widens. Timing shifts with heat. Errors show up late, not during the quick demo.
• IR drop and noise. Base dies pull current through TSV forests and package planes. More pins at a tighter pitch raise current density. Weak PDNs turn into “software bugs” two months later.
• Warpage and coplanarity. Big or stitched interposers do not sit perfectly flat at temperature. A tiny bow across thousands of fine joints becomes intermittent contact. Underfill can help or lock in stress; neither saves you if the stack-up is wrong.
• Thermo-mechanical fatigue. Cycling moves things. Intermittents appear at specific loads or ambients and waste weekends. Good packages are boring at every temperature you plan to use.

What HBM4 bandwidth really means at the package edge

Per-stack numbers are the pitch. The result that matters is aggregate bandwidth once you pay the tax for routing, skew control, crosstalk, and thermal drift across a hot interposer. At HBM4 rates, you are effectively building a precision radio over a heated slab. RDL geometry, dielectric choices, return paths, and guards all carry weight. Close timing with guardbands, or ship a part that behaves like a lower bin the moment it gets warm.

2.5D survives, 3D helps, and purity is a myth

Full 3D will grow, but 2026 is still a 2.5D world with local 3D where it pays. You will see big silicon interposers for extreme lanes, organic bridges when cost wins, and short vertical links for local SRAM or cache slices to relieve congestion. The manufacturable answer is a mix, not a diagram. The right package is the one that survives the line and behaves under soak, not the one that looks elegant on stage.

Hybrid bonding is leverage, but rework is unforgiving

HBM4 likes hybrid bonding because it removes solder, tightens pitch, lowers parasitics, and improves thermal paths. The price is adult yields. Pre-bond test, contamination control, alignment metrology, and post-bond inspection must be boring. If they are not, you cook expensive assemblies. Hybrid bonding is brilliant in a disciplined factory and a liability in a line that is still finding its feet.

Substrates and interposers are still the gate

Everyone talks wafers. Schedules live and die on ABF substrate capacity and reticle-stitch interposers. Large interposers are fragile and slow to build. ABF is healthier than 2023, but big footprints are still queued. Sensible portfolios split into hero packages with large interposers and max stacks for peak bandwidth, and bridge-based builds that give up some bandwidth for saner cost and better availability. Plan for a family, not a single footprint. That is how you ride supply shocks without rewriting roadmaps.

Chip-first vs chip-last: what saves money early in HBM4

Chip-first mates the compute die early and brings in memory after. Chip-last routes and tests the HBM and interposer first, then mates the expensive logic only when the assembly proves healthy. If you expect rough early yields, chip-last saves scrap. You pay for handling and timeand in the ramp year, chip-last looks sensible. Once you have the defects down and alignment on muscle memory, chip-first wins on cycle time.

Power delivery: Backside power helps, but the package still decides

Backside power on the logic tile clears routing and reduces droop in heavy bursts. Good. It does not fix HBM base rails. Those still ride through TSVs and planes. The only way out is a proper PDN: planes sized for the currents, via farms at the right density, and decoupling where the inductance makes sense. Cheap PDN work looks like flaky software later. Pay early or bleed late.

Signal integrity at HBM4 speeds

Skew, jitter, and crosstalk graduate from footnotes to schedule risk. The serious vendors publish guardbands and live inside them. The brave ones chase a lab-only target and spend a year pushing firmware against physics. Buy from the boring teams. Ask hard questions when the story leans on future updates.

Thermals: design for soak, not sprints

Short runs prove nothing at these densities. Test for an hour at realistic duty with honest logging. A healthy hall shows thermal maps that settle and stay flat, manifold pressures that do not hunt, and stack temperatures that live inside the vendor band without clipping every few minutes. If memory runs hot while core logic looks fine, you throttle memory first, and throughput collapses. That is where budgets go to die.

Cold plates win on service if you do them properly

Most fleets stick with cold plates because they are clean and serviceable. The basics matter. The plate must be flat and pressure-mapped, or a few stacks will cook. Loops need segmentation so you do not drain a row to fix a tray. Pumps and valves need enough headroom to avoid oscillation when workloads swing. Chemistry must match the metals in the loop, and the connectors must not turn every job into a mess. None of this is glamorous. All of it separates a healthy site from a slow one.

Cooling is a control problem, not a checkbox

Outside plant sets the ceiling. Plates and manifolds decide how close you can run without oscillation. Workloads swing between prefill-heavy and decode-heavy windows. If your control strategy chases the workload, hydraulics will hunt and components will age. The fix is dull and effective: a plant that tolerates transitions and rules that smooth demand instead of reacting late. This is where scheduler policy and cooling policy meet, and it is where the money is saved.

Networking pressure goes up when packages get faster

Push more inside the package, and you expose the fabric. Keep work near memory. Do not bounce tensors across racks unless the batch justifies it. Local cluster bandwidth in the hundreds of terabits per second is table stakes. Campus paths that can spike toward a petabit for short windows let you evacuate quickly without wrecking a shift. Evacuation should be routine, not an event. If it becomes an event, dates start to slip.

Software and scheduling decide if the hardware pays off

Once power and shells land, the only lever left is the scheduler. The goals are simple to say and hard to do. Keep useful accelerator hours per installed megawatt high over weeks, not days. Keep state local and place datasets, shards, and features near the work. Feed the right engine the right stage and avoid fallbacks that hide on dashboards but cost money on the bill. If your model zoo only maps well to half the fleet, stop buying hardware and fix kernels, compilers, and placement rules. Bigger racks will not fix lazy scheduling.

Binning in 2026: draw clean lines and tell the truth

Top bins will be tight. Expect partial stacks, slower I/O bins, and SKUs with fewer stacks in lower price tiers. That is not failure. That is how you ship volume. The trick is to define bins that create stable behaviour classes so customers do not spend weeks chasing variance. Publish the map, show the thermal headroom, and make it predictable.

RAS is the difference between a blip and a bad week

HBM needs ECC as table stakes. Patrol scrubbing and background repair matter when stacks sit warm. Spare rows and TSV repair are not just yield tricks at the fab. They are operational features. Expose correctable error rates per stack. Show per-package throttle history. Let operators see a slope before it becomes an outage. Reliability is not a slogan. It is a dashboard with honest numbers.

Test flows that catch pain before it hits the rack

Good lines run long burn-in with realistic duty and keep the curves. They measure interposer continuity and skew at temperature, not just at a bench. They scrap early instead of pushing marginal assemblies downstream. If a vendor cannot explain soak tests, rework paths, and acceptance bands in plain English, they are not ready for your order.

What NVIDIA, AMD, and Intel are likely to ship

NVIDIA. Expect very large interposers on halo parts, aggressive HBM4 speeds, and strict operating envelopes that turn lab numbers into stable production. NVIDIA will push memory bandwidth and cache like always. Watch where hybrid bonding lands to tame thermals and density. Expect clean bins and tight guardrails.

AMD. Expect a family rather than a single hero. Chiplets and packaging options are the hedge. AMD can offer SKUs with fewer stacks or smaller interposers when ABF and interposer lines get tight. It is less flashy on stage but resilient when supply wobbles. Expect focus on perf per watt and board cost, with optionality as a tool you can actually use.

Intel. Expect Foveros and EMIB to move from slide to shipping story. The advantage is integration across compute, package, and assembly. If Intel marries predictable pitches with boring rework and visible telemetry, they win trust faster than the market expects. The risk is the same as always: big promises on timing. The fix is fewer miracles and more discipline.

Capacity questions that separate slides from reality

• How many fully stacked packages can you assemble per week without overtime?
• What is the tested-good rate per stack after a one-hour soak at realistic duty?
• What throttle behaviour should operators expect per stack at full power, and how does the scheduler back off while keeping throughput high?

Vendors who answer those in writing get repeat business. Vendors who wave at the problem get a first order and a cancelled follow-up.

Rack and site implications that people sidestep

HBM4 pushes package density up and rack heat with it. Liquid is the default. Per-cabinet averages in the high hundreds of kilowatts shift from special cases to normal planning. That stresses the outside plant, the manifolds, and the procedures. You want segments that let you isolate a tray without draining a row. You want service corridors that are not a puzzle. You want quick disconnects that do not turn every job into a mess. These basics decide whether your hall is productive or always behind.

Networking architecture that avoids self-inflicted pain

If you scale package bandwidth and leave the fabric alone, you only move the bottleneck. The right pattern is a spine that can absorb evacuation and burst traffic without becoming a tax. Keep latency-sensitive inference near the edge with hot models. Keep training wide and feed it with hot caches. Shape batches so the distance is worth it. Evacuation should be a quick copy and restart, not a shift-ending drama.

Cost per token when memory actually behaves

Energy per token at fixed quality is the clean fleet-scale unit. HBM4 helps when it lets you raise batch sizes without thrashing memory and hold decode steady without throttling. The scheduler has to keep compute and memory hot together. If HBM4 adds thermal complexity and you spend nights chasing memory limits, the cost per token rises even though the tile is faster. Packaging health matters more than a pretty number in a keynote.

Buyer checklist vendors will dislike, and serious operators will use

• Make packaging telemetry a deliverable: per-stack temperatures, correctable error rates, and throttle history over week-long windows.
• Publish bin maps that list stack counts, I/O rates, and thermal headroom per SKU, and map them to expected software behaviour.
• Document evacuation performance: time to drain and refill a rack, plus P99 latency during the event.
• Report energy per token at fixed quality for common models over a week, not a day.

If a vendor refuses, they are selling a press event. If they agree, they are selling a platform you can plan around.

What breaks in 2026 and what really ships

At least one high-profile ramp will slip because the interposer yield or substrate queues missed the slide. At least one vendor will win on reliability with lower clocks, sensible guardbands, and packages that simply behave for months. Buyers will pay for predictable schedules and repeatable behaviour rather than chase the last few percent of bandwidth. Teams that respected HBM4 physics will look smart. Teams that assumed HBM4 is a drop-in for HBM3E will spend budget on rework and call it learning.

My take

HBM4 is not a free upgrade. It is an engineering step that rewards teams who respect heat, power, mechanics, and time. Winners treat packaging like a product with telemetry, published limits, and yields that do not require miracles. Losers chase headlines, ignore soak, and discover that a hall full of beautiful tiles does not make tokens when memory throttles. 2026 will be remembered for who shipped reliable memory packages at scale, not who flashed the tallest stack on a slide.

Practical steps operators can start today

• Confirm the outside plant can handle cycling loads without hunting. Do not let hydraulics chase workloads.
• Segment plates and manifolds so you can service trays without draining rows. Train dry procedures now, not during an outage.
• Build dashboards for per-stack temperature, correctable errors, and throttle history. Fast access, no login maze.
• Write evacuation drills that finish faster than your median checkpoint interval and practice until they are boring.
• Demand bin maps and packaging telemetry in contracts and tie acceptance to week-long metrics.
• Teach schedulers to keep memory close to the compute and avoid moving state across rooms unless the batch justifies it.

The overall bottom line is that the compute tile will not save anyone next year. The teams that make memory and packaging behave under real load, expose the right telemetry, and respect the limits will win. HBM4 gives you tools, but it does not give you discipline. Spend time where tokens are won or lost: the package, the plant, and the overall plan. In the words of the great movie franchise Rocky, “That’s where winning is done”.
